2005 Toyota Prius
Gasoline-Electric Hybrid
City  60 mpg      Highway 51 mpg     Combination  55 mpg

http://www.curtis.anderson.name/2005/prius/hatch-trunk/page.htm


DSC00429.jpg (69245 bytes)DSC00432.jpg (62081 bytes)DSC00449.jpg (50883 bytes)DSC00448.jpg (81368 bytes)
The high DC voltage battery is located behind the rear split seats
down below a closed panel.

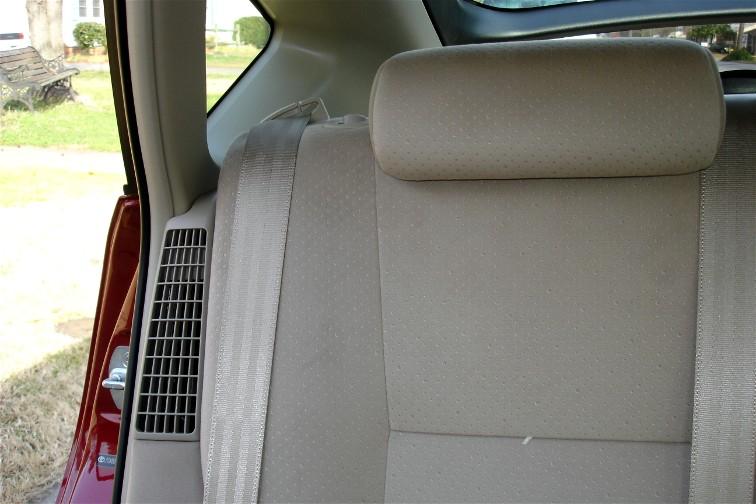

The battery is fan cooled and vented from the passenger side rear seat.

DSC00433.jpg (44860 bytes)DSC00434.jpg (44892 bytes)DSC00435.jpg (63675 bytes)DSC00437.jpg (54427 bytes)

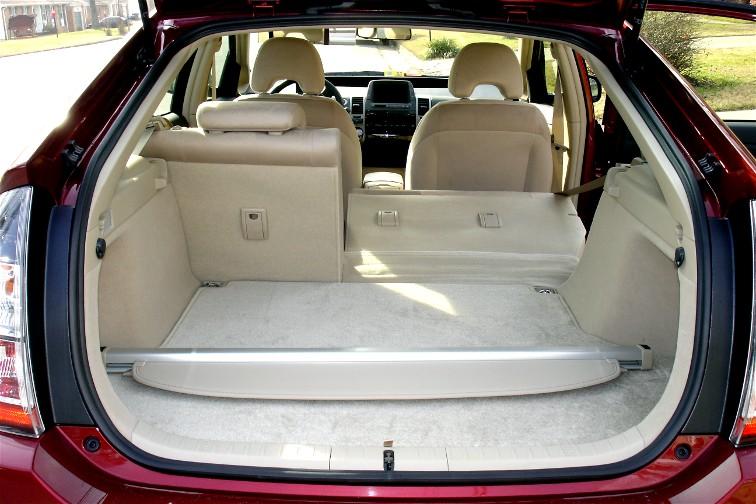

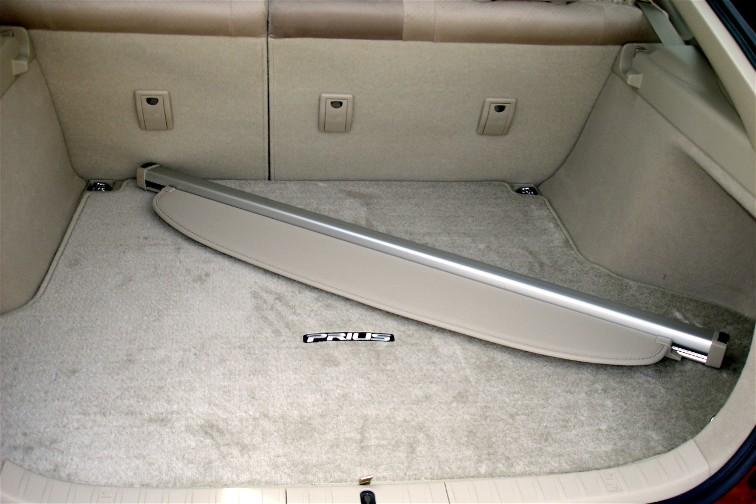

The hatchback curtain can be rolled in and removed easily.

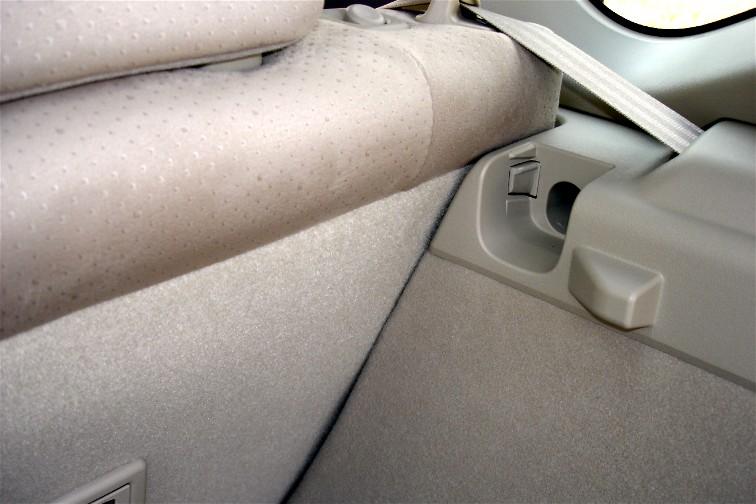

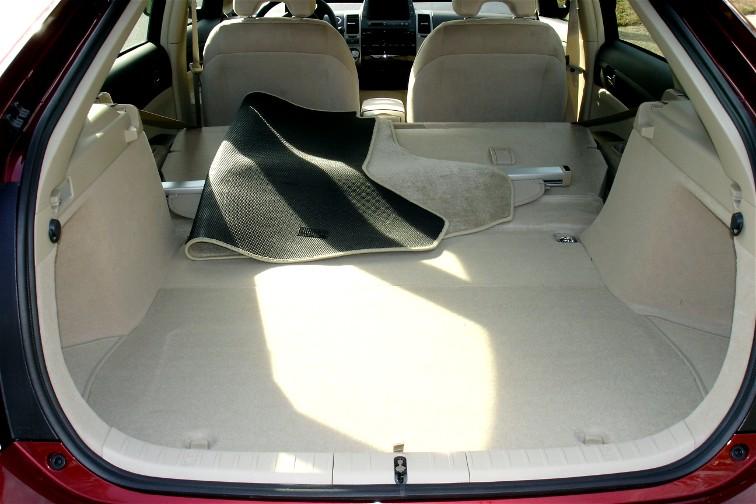

The seats can be folded down.

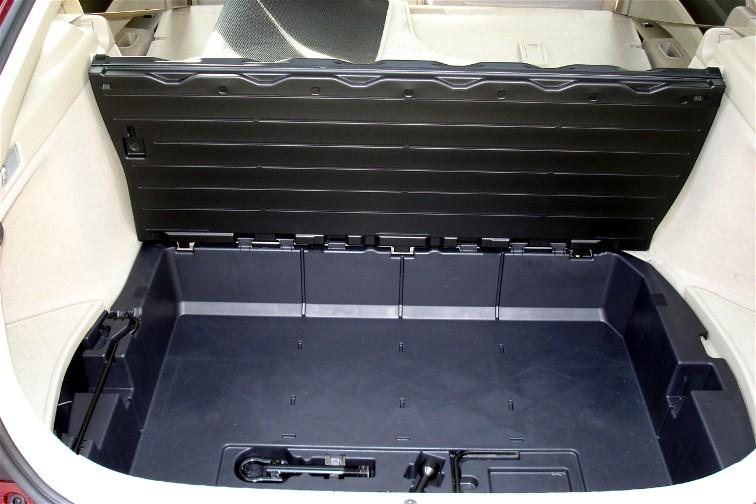

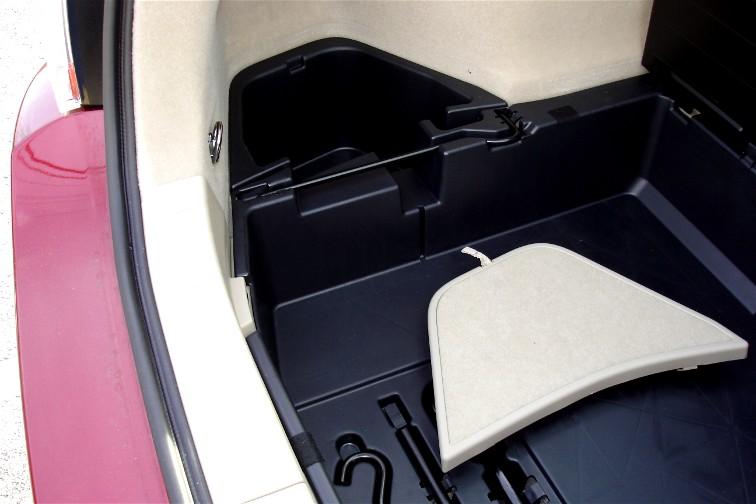

Removing the carpet mat, the toolbox area is accessible.

DSC00442.jpg (57380 bytes)DSC00443.jpg (48712 bytes)DSC00444.jpg (50310 bytes)DSC00445.jpg (52691 bytes)

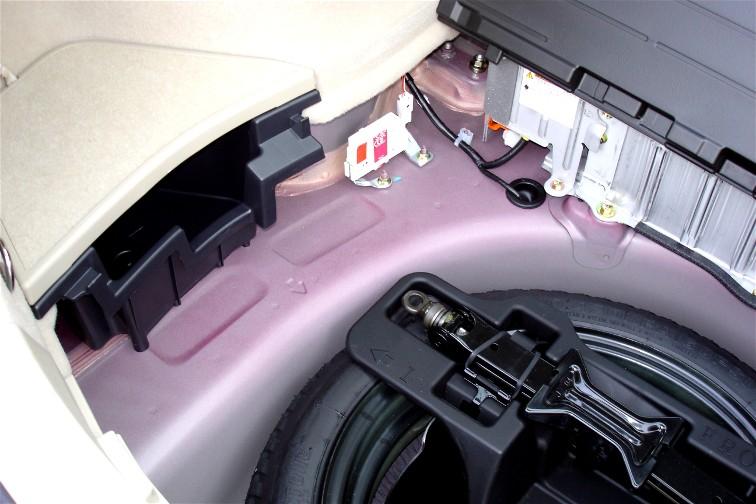

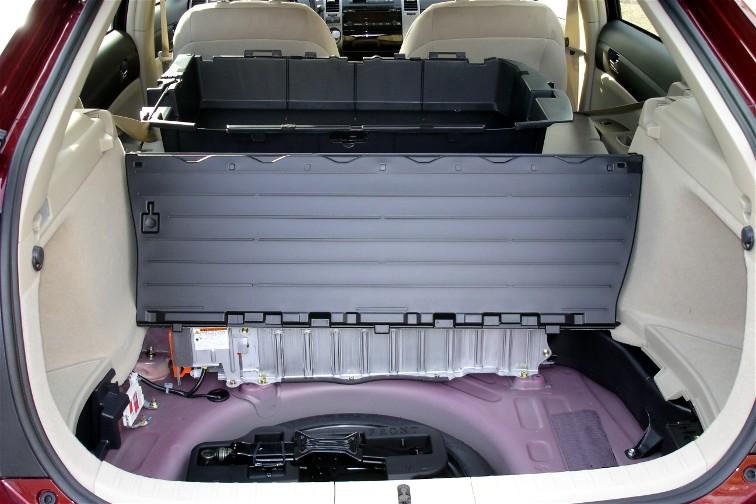

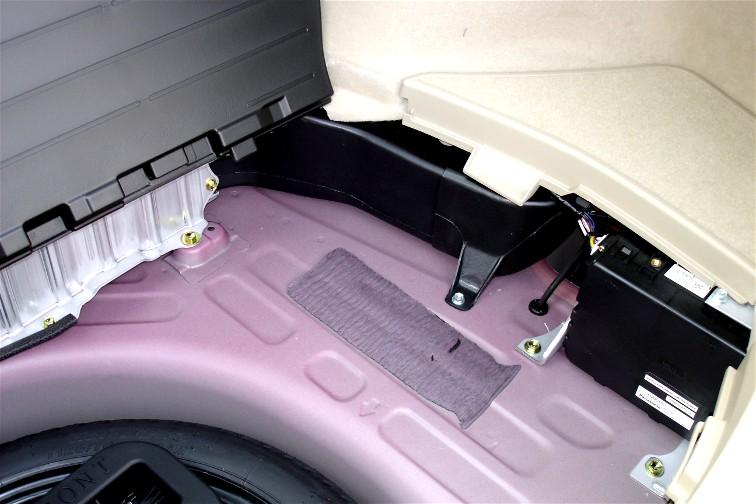

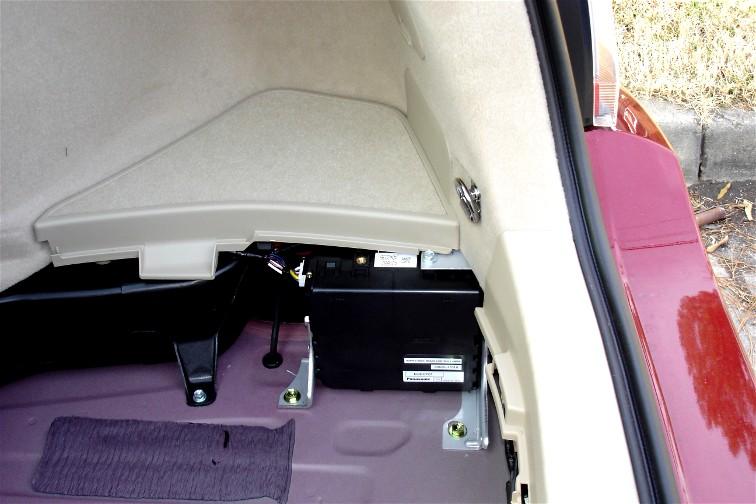

The toolbox can be removed to gain access to the spare tire
and some battery-relay-electronic components.
